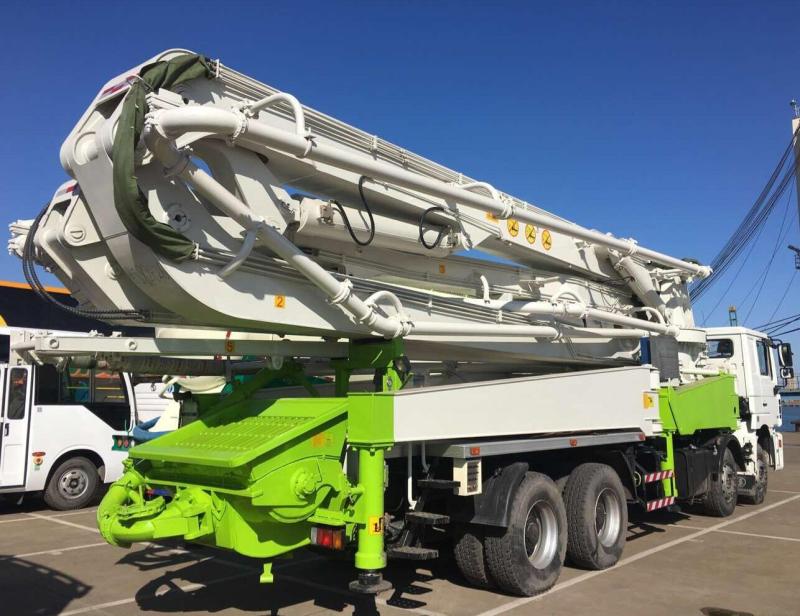

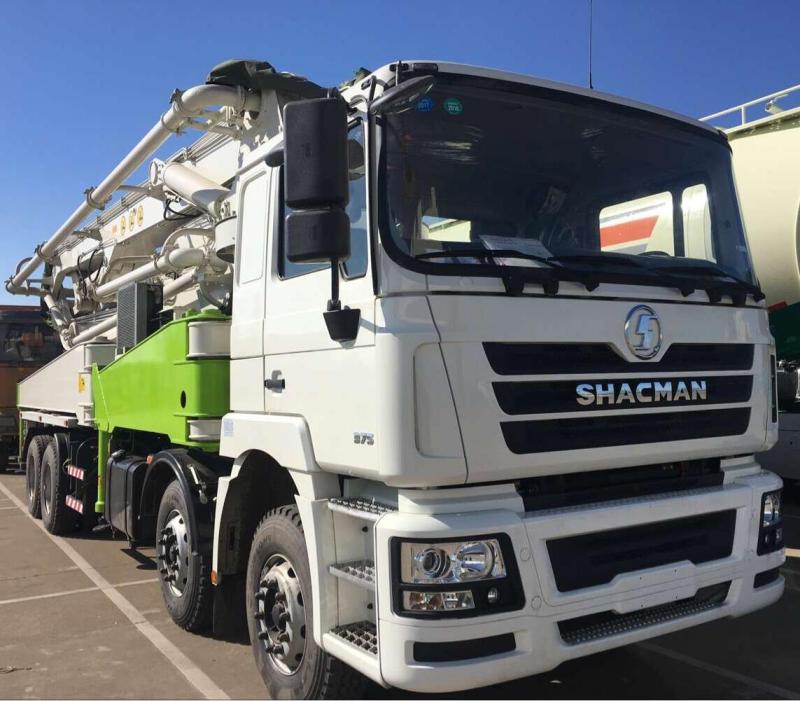

SHACMAN 6X4 Truck mounted concrete pump truck HB50V
Overall dimension: 12725x2530x4000mm
Total weight: 35000kg
Chassis model: SHACMAN F3000
Engine: CUMMINS ENGINE ISME345
Max. Torque: 1710N.m /1000-1400rpm
Theoretical output of pump system: 170 m3/h
Concrete pumping pressure: 8MPa
Theoretical pumping times: 23~26
Delivery cylinder diameter x stroke: 260mm x 2000mm
Max. Diameter of pumping concrete aggregate: 40mm
Filling height: 1580mm
Concrete slump range: 8~23cm
Placing boom reach height: 49.1m
Placing boom reach depth: 34.4m
Placing boom slewing radius: 44.2m
Unfolding angle of the 1st section: 90 degree
Unfolding angle of the 2nd section: 180 degree
Unfolding angle of the 3rd section: 180 degree
Unfolding angle of the 4th section: 240 degree
Unfolding angle of the 5th section: 210 degree
Unfolding angle of the 6th section: 120 degree
