| MODEL | SX1254DR564 | |
| Left Hand / Right Hand | ||
| Driving type | 6×4 | |
| Curb weight | 13500kg | |
| Overall Dimension(LxWxH) | 10500×2490×3400mm | |
| Wheelbase | 5575+1400mm | |
| Max. Speed | 90 km/h | |
| Max. Grade ability | 30% | |
| Engine | Brand | WEICHAI |
| Model | WP10.340E22 | |
| Emission Standard | EUROⅡ | |
| Rated output power | 340HP | |
| Rated speed | 2200rpm | |
| Max.Torque | 1250N.m/1400～1600r/pm | |
| Displacement(L) | 9.726L | |
| Transmission | Brand | FAST |
| Model | 10JSD140 , manual , 10F/2R | |
| Front axle | Model | MAN 7.5T |
| Rear axle | Model | 13T MAN double reduce axle， |
| Clutch | ￠430 diaphragm clutch | |
| Steering | ZF technology | |
| Frame | 850×300（8+7） | |
| Suspension | multiple leaf springs front and rear/Four main spring + four bolts | |
| Fuel tank | 400L fuel tank | |
| Wheels and tires | 12.00R20 | |

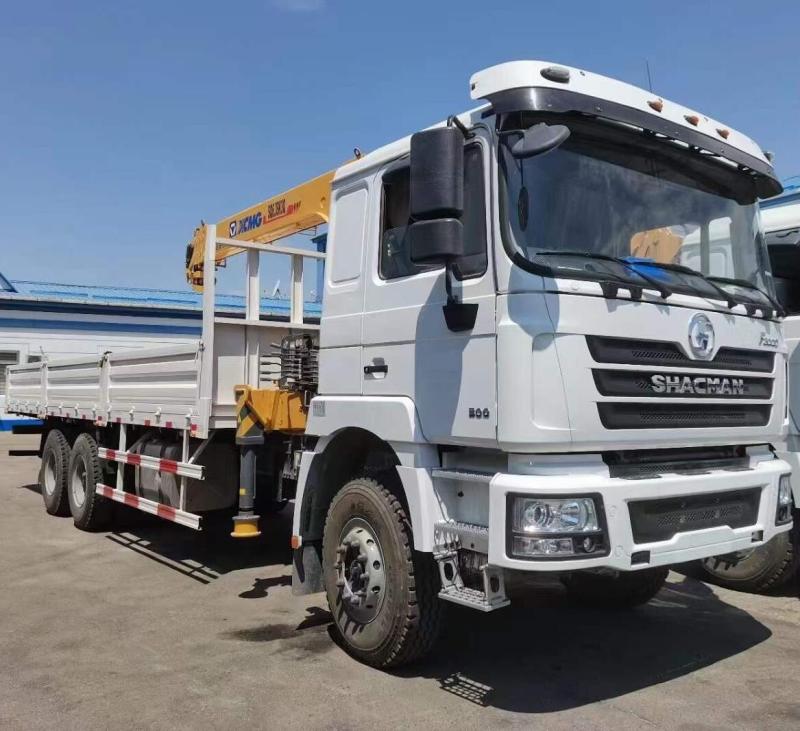

| Cabin | F3000 D cab/ one sleeping bed/hydraulic driver seat/ four-point hydraulic suspension cab/ A/C / metal bumper | |
| CARGO BODY AND CRANE | Cargo dimension: 7500x2300x600mm XCMG 14T Telescopic crane boom SQ14SK4Q Max. lifting capacity: 14000kg Max. lifting moment: 35 T.M Recommend power: 30kw Max. oil flow of hydraulic system: 63 L/min Max. pressure of hydraulic system: 26Mpa Oil tank capacity: 160L Crane weight: 4800kg |
|
