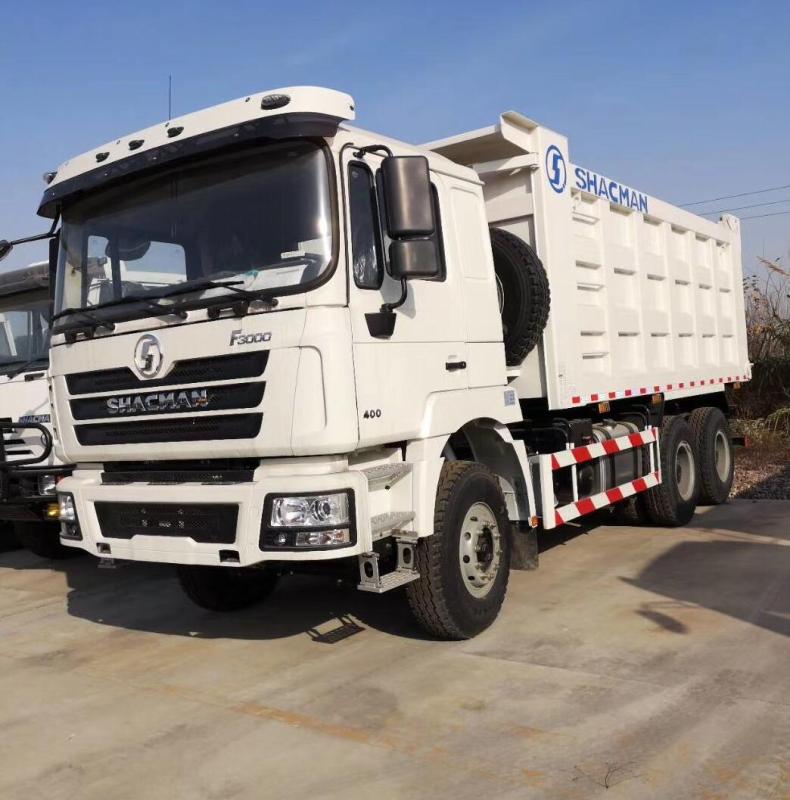

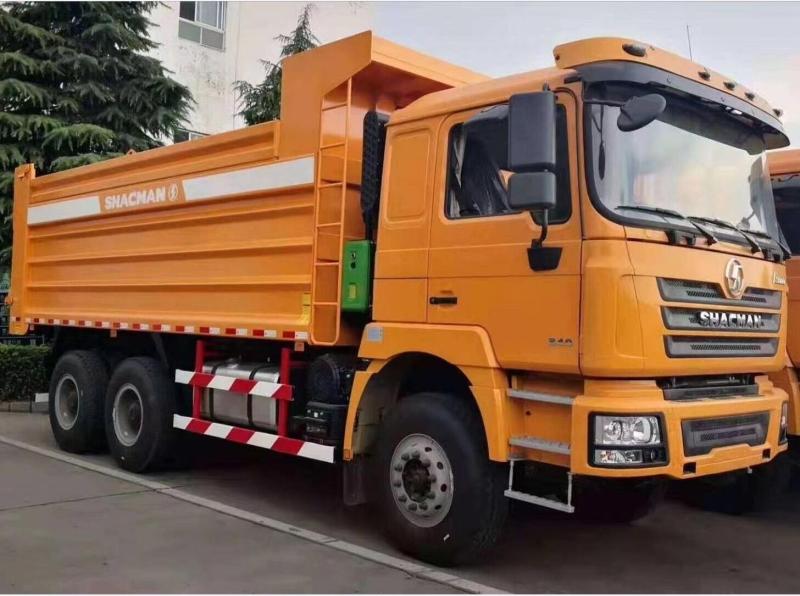

| MODEL | SX3255DT384 | |
| Left Hand / Right Hand | ||
| Driving type | 6×4 | |
| Curb weight | 9800kg（chassis） | |
| Overall Dimension(LxWxH) | 8400×2490×3480mm | |
| Wheelbase | 3775+1400mm | |
| Max. Speed | 72 km/h | |
| Max. Grade ability | 30% | |
| Engine/发动机 | Brand | WEICHAI |
| Model | WP10.380E22 | |
| Emission Standard | EUROⅡ | |
| Rated output power | 380HP | |
| Rated speed | 2200rpm | |
| Max.Torque | 1600N.m/1200～1600r/pm | |
| Displacement(L) | 9.726L | |
| Transmission | Brand | FAST |
| Model | 10JSD180 with QH50 PTO , manual , 10F/2R | |
| Front axle | Model | MAN 9.5T |
| Rear axle | Model | 16T MAN double reduce axle，ratio 5.92 |
| Clutch | ￠430 diaphragm clutch | |
| Steering | ZF technology | |
| Frame | 850×300（8+7） | |
| Suspension | multiple leaf springs front and rear/Four main spring + four bolts | |
| Fuel tank | 400L fuel tank | |
| Wheels and tires | 12.00R22.5 | |
| Cabin | F3000 D cab/ one sleeping bed/hydraulic driver seat/ four-point hydraulic suspension cab/ A/C / metal bumper | |
| Body Bucket | 5600x2300x1500mm, 20m3 volume,(15-25m3 option). Thickness: floor 8mm, side 6mm Lifting type: Middle lift/ front lift |
|
