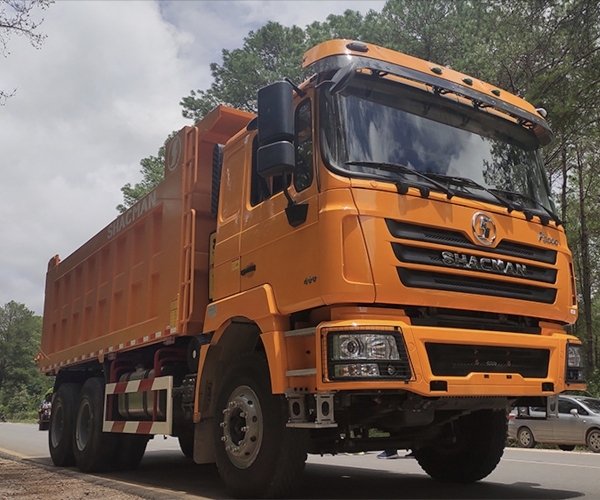

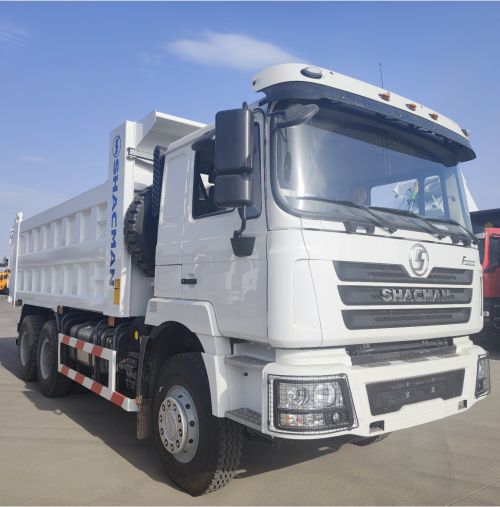

MODEL |
SX3255DR384 |
|
|
|
Left Hand Drive |
|
|
Driving type |
6×4 |
|
|
Curb weight |
15000kg |
|
|
Overall Dimension |
8500×2490×3450mm (technology) |
|
|
Wheelbase |
3775+1400mm |
|
|
Max. Speed |
90 km/h |
|
|
Max. Grade ability |
30 |
|
|
Engine |
Model |
WEICHAI WP10.340E32 |
|
Emission Standard |
EURO-Ⅱ |
|
|
Rated output power |
340HP@2200rpm |
|
|
Max.Torque |
1160N.m/1200～1600r/pm |
|
|
Displacement |
9.726L |
|
|
Transmission |
model |
FAST RTD11509C with QH50 PTO, Manual, 9F/1R |
|
Front axle |
Model |
MAN 7.5T |
|
Rear axle |
Model |
2×16T double reduction axle， ratio 5.73 |
|
Clutch |
￠430 diaphragm clutch |
|
|
Steering |
ZF technology, left hand drive |
|
|
Frame |
850×300（8+7）Double layers frame, stronger type |
|
|
Suspension |
multiple leaf springs front and rear/Four main spring + four bolts |
|
|
Fuel tank |
380L iron tank |
|
|
Wheels and tires |
12R22.5 Tubeless tire |
|
|
ABS |
With ABS |
|
|
Cabin |
F3000 flat roof cabin/one sleeping bed/hydraulic driver seat/ four-point hydraulic suspension cab/ A/C / metal bumper |
|
|

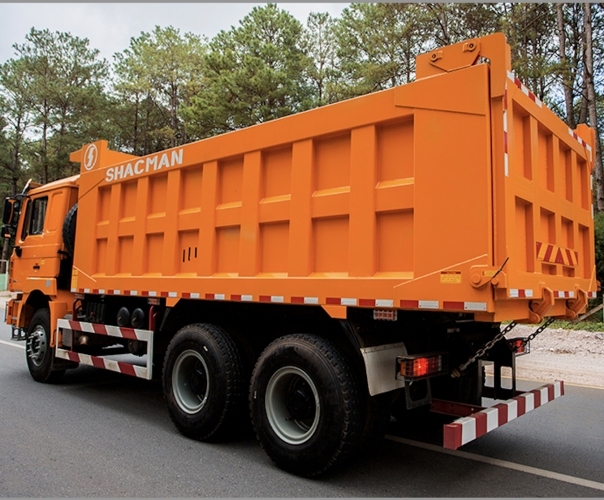

Body/Bucket |
5600x2300x1500mm, 20m3 volume, Thickness: floor 8mm side 6mm. Middle lift cylinder |
|
