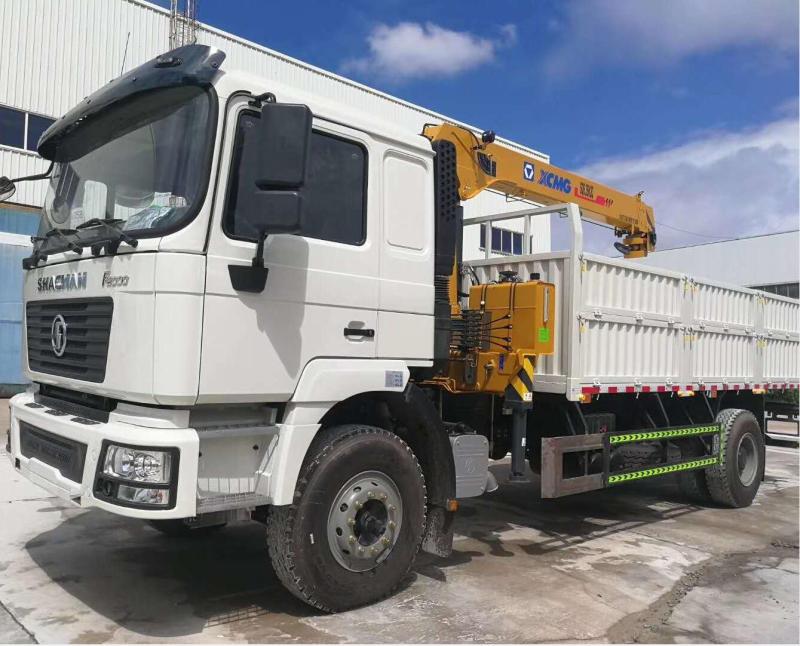

| MODEL | SHACMAN 4X2 TRUCK MOUNTED CRANE, 6T | |
| Left Hand / Right Hand | ||
| Driving type | 4×2 | |
| Curb weight | 9500kg | |
| Overall Dimension(LxWxH) | 8200×2490×3300mm | |
| Wheelbase | 4500mm | |
| Max. Speed | 90 km/h | |
| Max. Grade ability | 30% | |
| Engine | Brand | WEICHAI |
| Model | WP6.210E32 | |
| Emission Standard | EUROⅡ | |
| Rated output power | 210HP | |
| Rated speed | 2300rpm | |
| Max.Torque | 750N.m/1400～1600r/pm | |
| Displacement(L) | 6.23L | |
| Transmission | Brand | FAST |
| Model | 8JS85TE-C , manual , 9F/1R | |
| Front axle | Model | MAN 5T |
| Rear axle | Model | 10T MAN double reduce axle， |
| Clutch | ￠430 diaphragm clutch | |
| Steering | ZF technology | |
| Suspension | multiple leaf springs front and rear/Four main spring + four bolts | |
| Fuel tank | 200L fuel tank | |
| Wheels and tires | 10.00R20 | |
| Cabin | L3000 cab/ one sleeping bed/hydraulic driver seat/ four-point hydraulic suspension cab/ A/C / metal bumper | |
| CARGO BOX AND CRANE | CARGO SIZE: 5000x2300x600mm XCMG SQ6.3SK3Q Crane boom Max. lifting capacity: 6300kg Max. lifting moment: 15.7 T.M Max. oil flow of hydraulic system: 40L/min Rotation angle: 360 |
|
