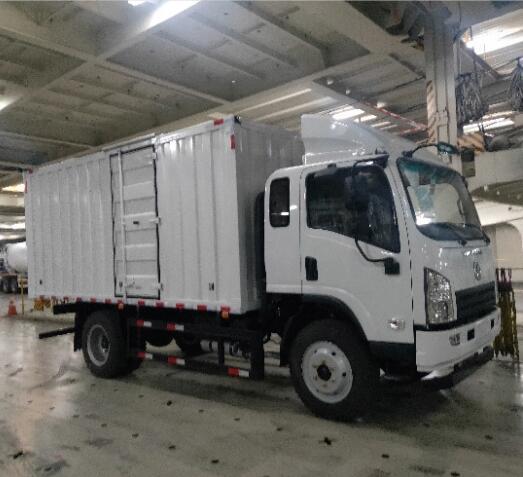

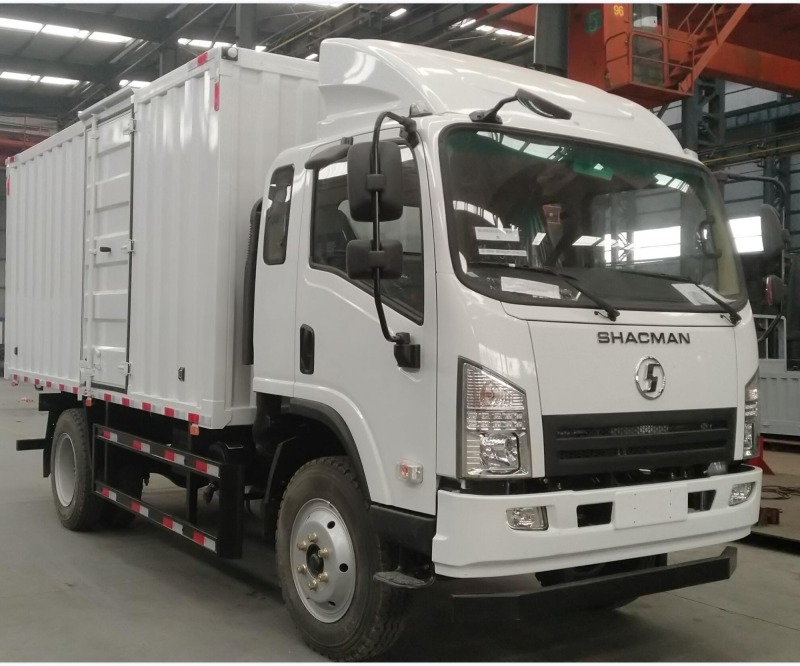

| SHACMAN 4X2 LIGHT CARGO TRUCK | ||
| Model | BA5NE42Y13E45 | |
| Drive type | 4x2 | |
| Weight (Kgs) | Complete Kerb mass (Kg) | 4800 |
| Capacity (Kg) | 10000 | |
| G.V.W. (kg) | 15000 | |
| Engine | Brand | YUCHAI |
| Model | YC4D130-33 | |
| HP | 130hp | |
| Torque(N.m)/rpm | 420 | |
| Type | Vertical, in-line,4 cylinder,turbocharged | |
| Displacement(L) | 4.214 | |
| Emission | Euro Ⅱ | |
| transmission | Brand | FAST |
| Model | 6DS50T | |
| ratio | 6 forward gears & 1 R gear 6.67，4.01，2.42，1.52，1.00，0.78 R 6.13 |
|
| Front Axle | Model | 145S |
| Capacity | 3200kg | |
| Rear Axle | Model | 145SD |
| Capacity | 8000 kg | |
| Ratio | 5.286 | |
| Suspension | Front | 75*13*9 |
| Rear | 75*15*11/75*13*8 | |
| Break system | Type | Dual circuit compressed air brake,exhaust brake |
| Dimension of truck | L*W*H(mm) | 7960×2300×2950 |
| Wheel base(mm) | 4500 | |
| Dimension of Cargo | LxWxH (mm) |
5800* 2200 * 2200 Floor 2mm, size 1.5mm |
| TIRE | Model | 8.25R20/16PR |
| Fuel tank capacity (L) | Materials | Iron |
| Capacity(L) | 130L | |
| Cab | Type | TJG131 Single |
| Performance | Max.speed | 90 |
| Approach/Deaparture（°） | 23/15 | |
| Electrics | Brand | LINGYUN |
| Battery | 24V | |
| Other | steering system | Hydraulic steering |
| Cab | Type | flat roof, radio ,USB, with A/C |
