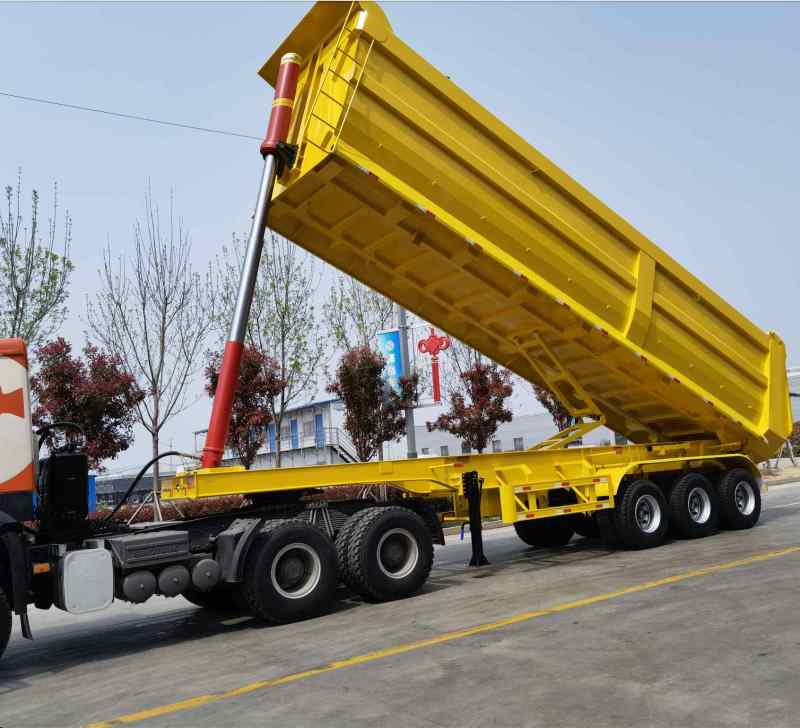

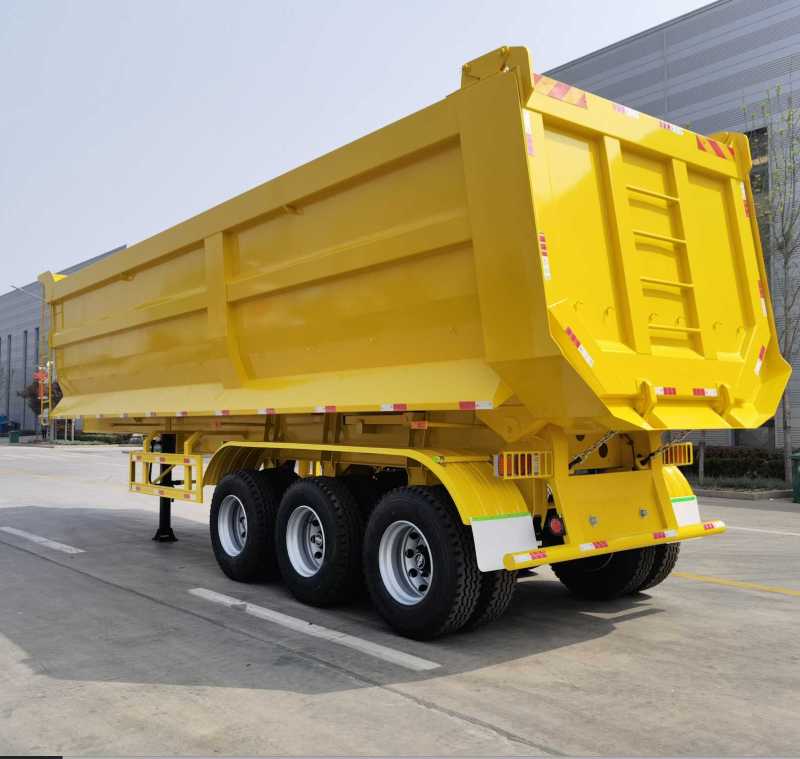

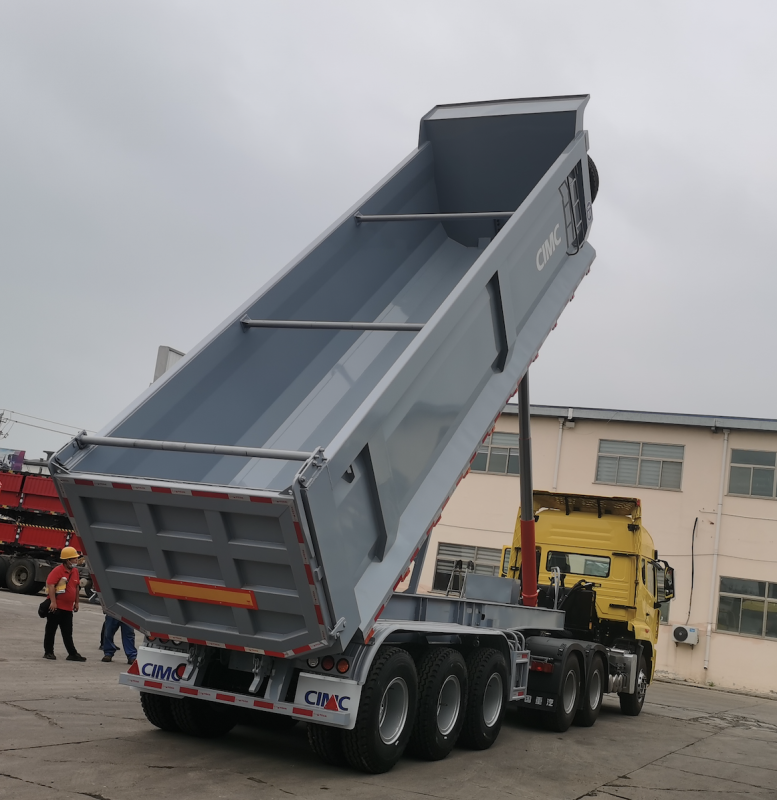

3 AXLES BACK TIPPER SEMI TRAILER
Overall dimension: 11000x2550x3800mm
Inner dimension: 10200x2300x1600mm
Thickness: floor 8mm, side 6mm
liftint type: front lift cylinder
Loading capacity: 60T / 80T
Dead weight: 12000kg
Axles: 3 x16T axles.
Suspension: 10 pcs leaf spring, 13x120mm
Kingpin: 3.5’’ bolt-in kingpin
Landing gear: FUWA, Two speeds, Manual
Tire : 12.00R20 radial tire, 12+1 pcs
High strength steel, 600mm height, I beam,
upper flange 14mm; middle flange thickness 10mm, Bottom flange 16mm, height 500mm
With one set PVC Cover with PVC Support
